BELL WAGON
NOVATO, CA
Backyard-Bar Service & Seating for 4 with a Rustic Finish
All Content including photos and designs Copyright Hitchman Homestead 2024.
May not be reproduced or distributed without written consent.

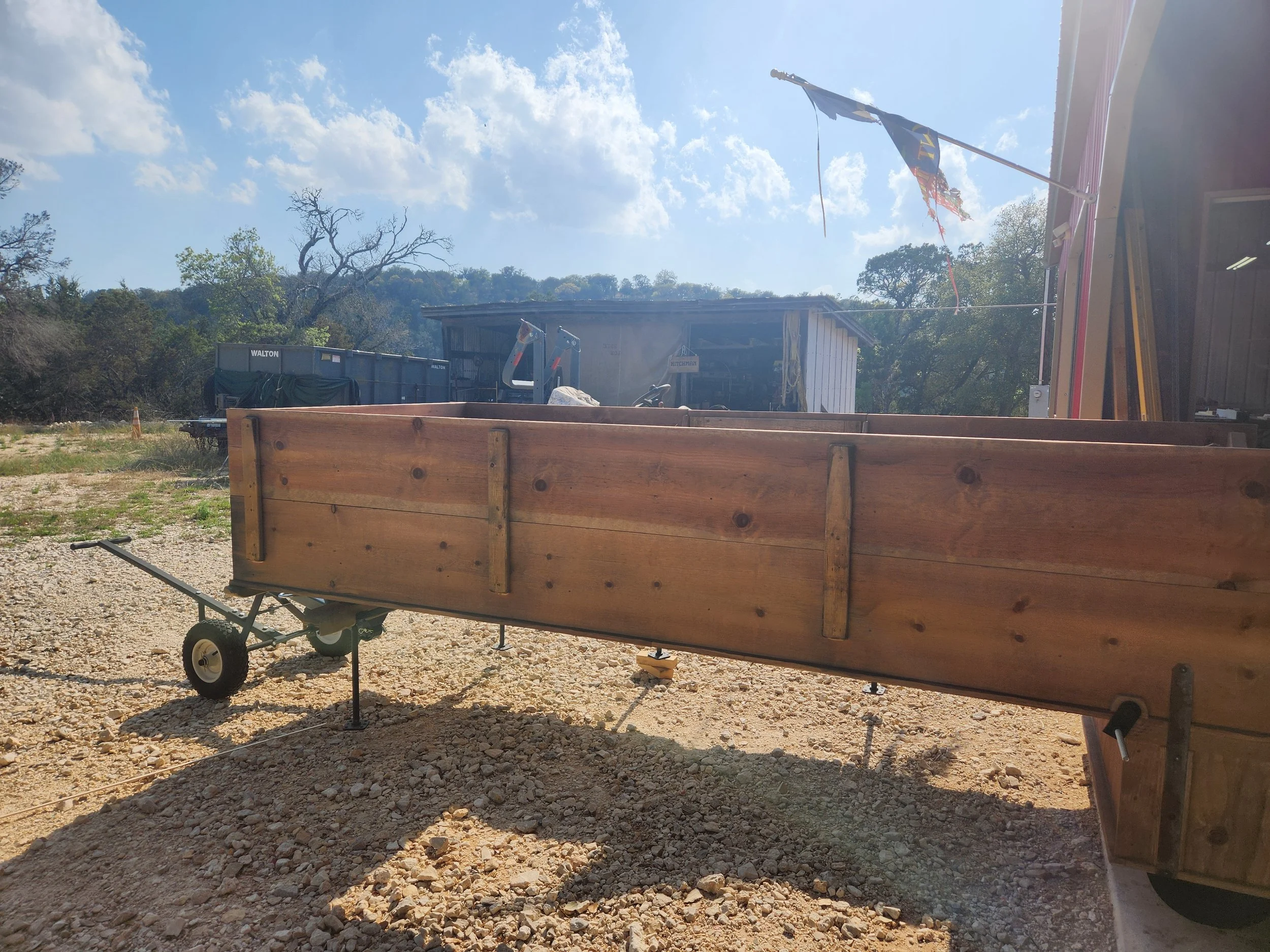

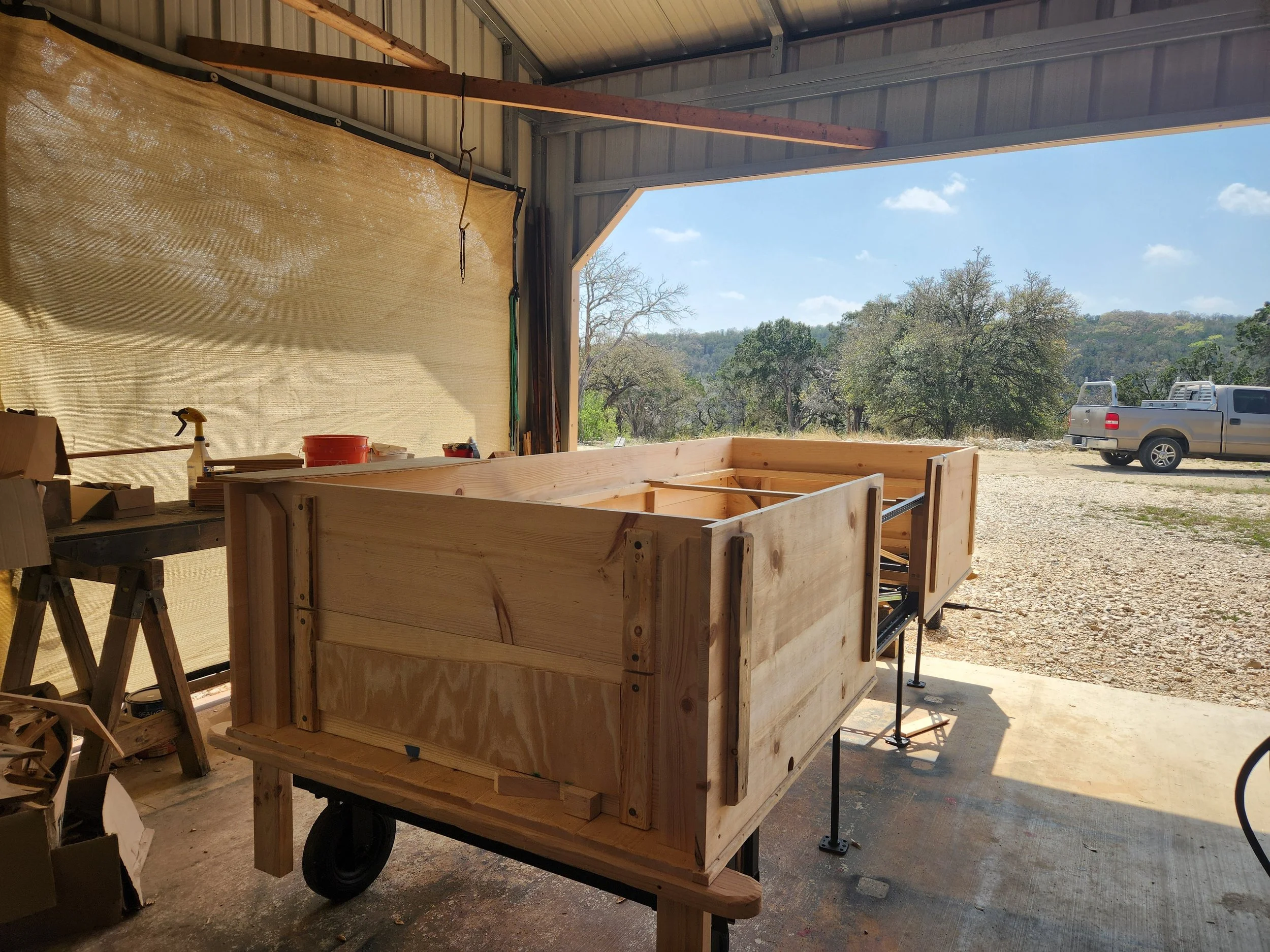

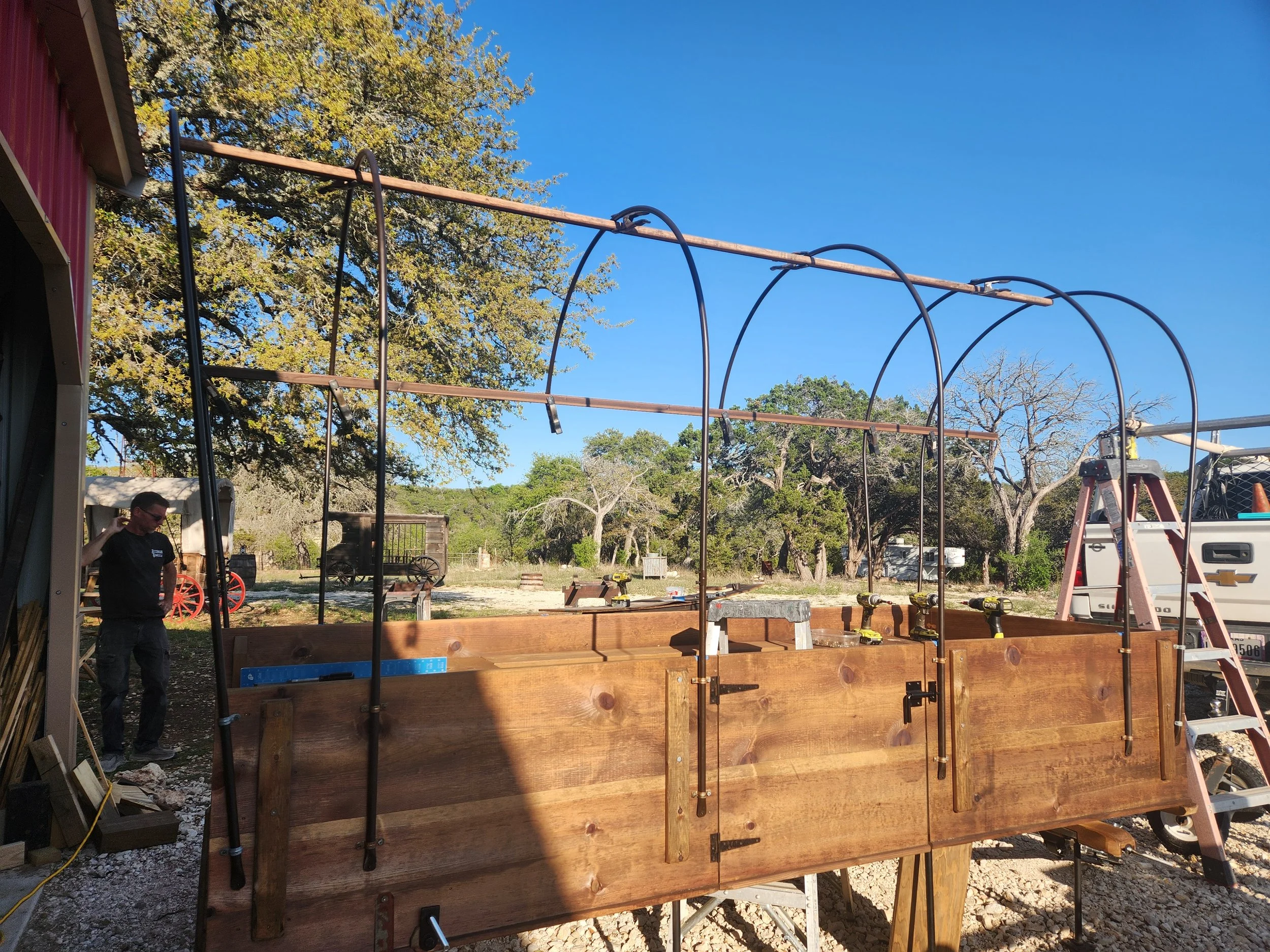

BUILD PROGRESS GALLERY
UPDATED 04/27/25
SITE PHOTOS / RENDERING FOR SCALE
DESIGN DRAWING & SPECS
Finish Chips / Trials Vs Finished Photos
WHEEL FINISH OPTIONS
WHEELS - WAGON SHOTS
Top Photos: Same Wagon with Red VS Black Wheels
Bottom Left: Black Wheels - Gloss VS Flat / Bottom Right: Chuck Wagon W/ Black Wheels
All Content including photos and designs Copyright Hitchman Homestead 2024.
May not be reproduced or distributed without written consent.
Bar Shelves & Pop-Out Bonnet Shade on Service Side (Exeter Build) Finish on build shown is Green Paint wash w/ burn and aging.
Lavender Waves Bar Shelving. Burn Finish Shown.
Wheels Mounted directly to box to increase legroom under the bar (Heirloom build)
Visible Support- No Boot Box (Red Barn Ranch)
Bar Seating / Shelving - Alamo Build
Roll-up bonnet Configuration - Lavender Waves
Boot box to conceal supports (Lavender Waves)
Build Shown in Video (Lavender Waves) was approximately 5’x10’ footprint. Front hitch would be minimized (removable?) Front Seat & Footrest and Rear Cargo box would be removed to bring dimensions to client specs.
Interior Workspace - front & rear in wood (Lavender Waves)
Footprint: 5x9
Finishes: Wagon Box: Aged Natural. Wheels: Aged Natural. Bonnet: Sunbrella ‘Parchment’ (shown in Exeter Build)
No Rear Cargo Box or Front Drivers Bench
Front & Rear work counters and Service side interior service shelf (narrow)
Bar-Counter Shelving on Service side only.
4 Barstools
Bonnet: Shade Pop out on Service side. Roll up on Door Side. No Lacing detail to add to ‘rustic’ appearance. Sunbrella Acrylic in Parchment. 5/10 Year Warranty. Waterproof and Mildew resistant.
Mobility: Stationary / Level Surface. Minimal or Removable Hitch.
Bar Wagon - Ground level service / proportions. (Bartender was 6ft 4in tall!)
Trail-R “Model w/ wagon floor. Photo shows location of trailer bed to wagon body.
Quick video showing bar service (Chuck Wagon Model)
General idea of wagon mobility (Cluck Wagon / Chicken Coop Model)
Bar Wagon - ground level service on asphalt. Visible feet. Occupant is 5ft 2in tall
Floored Trail-R model - Black paneling to enclose below wagon-box
Long walk-through - shows wagon size / proportion as well as foot visibility with no floor. (Chuck wagon model)
